Specifications

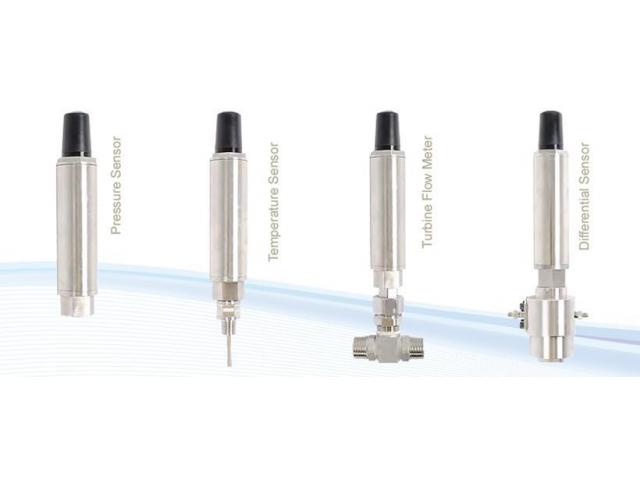

Sensor Pressure Sensor RTD Sensor Flow Meter Differential Sensor
Type Silicon-Sapphire RTD Turbine Silicon-Sapphire
Range 3 k to 15 kpsi -50°C to 200°C 15 to 1,500 Pulse/s Line: 2.9 k; Diff: 290 psi
Services H2S/CO2 Services H2S/CO2 Service H2S/CO2 Services H2S/CO2 Services
Metrology
Accuracy ±0.1% psi full scale ±1°C ±1% ±0.1% psi full scale
Resolution 0.01 psi @ 1sec 0.01°C One Pulse 0.01 psi @ 1sec
Drift–psi/yr <±3 @ 6 kpsi N/A N/A <±3 psi
Characteristics
Environmental Temperature -40 °C to 70 °C -40 °C to 70 °C -40 °C to 70 °C -40 °C to 70 °C
Battery Type Lithium size C Lithium size C Lithium size C Lithium size C
Battery Life–@ 60 sec sample rate Up to 2 years Up to 2 years Up to 2 years Up to 2 years
Sample Rate 1 to 120 sec/sample 1 to 120 sec/sample 1 to 120 sec/sample 1 to 120 sec/sample
Dimension–inch 9.65 X 2 (OD) 9.65 X 2 (OD) 9.65 X 2 (OD) 9.65 X 2 (OD)
Safety Class I Div 1 Grp ABCD, T4 Class I Div 1 Grp ABCD, T4 Class I Div 1 Grp ABCD, T4 Class I Div 1 Grp ABCD ,T4 (-40 °C to 60 °C) (-40 °C to 60 °C) (-40 °C to 60 °C) (-40 °C to 60 °C)
Communication
Data Set Time/Pressure Time/Temperature Time/Flow Rate Time/Deferential Pressure
Method ZigBee® ZigBee® ZigBee® ZigBee®

Wireless Transmission
Distance 100m ZigBee® Standard 100m ZigBee® Standard 100m ZigBee® Standard 100m ZigBee® Standard . or 1.1km ZigBee® Pro or 1.1km ZigBee® Pro or 1.1km ZigBee® Pro or 1.1km ZigBee® Pro

Transmission Power +1 dBm ZigBee® Standard +1 dBm ZigBee® Standard +1 dBm ZigBee® Standard +1 dBm ZigBee® Standard . or +10 dBm ZigBee® Pro or +10 dBm ZigBee® Pro or +10 dBm ZigBee® Pro or +10 dBm ZigBee® Pro


See TORNADO33 RemoteWatcher Brochure for specifications of router and logger
